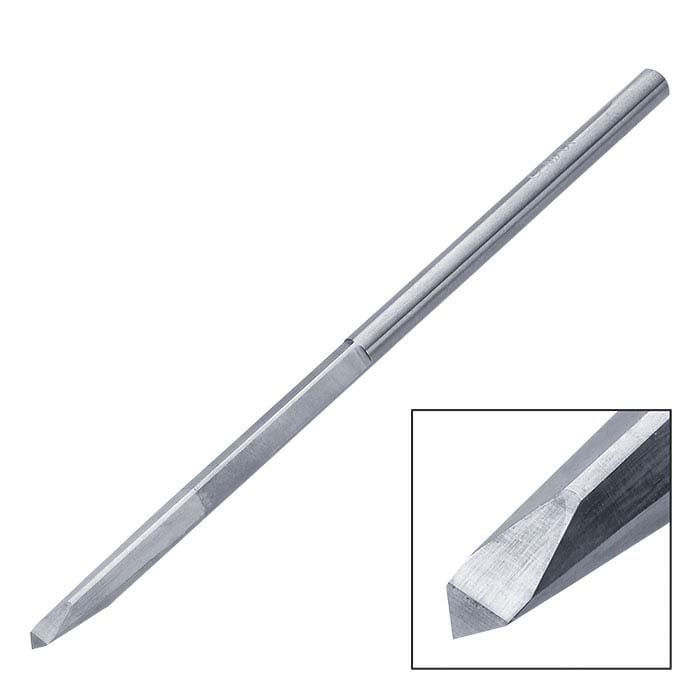

GRS® C-Max 100-Degree V-Point Graver

Achieve professional hand-engraving and stone-setting results with GRS® C-Max® gravers. This burin graver is commonly used for hand engraving tasks, especially intaglio printmaking.

• The top front of the burin features two ground reference surfaces forming a 90° square edge.
• Behind the 35° front graver face is a relief face sharpened at 15°. The burin sides are thinned by grinding a 2.5° relief surface on both sides that is approximately 0.6" (15mm) long.
• Face angle is 35°.
• Heel construction includes two flat ground surfaces approximately 0.25" (6mm) long at 12° elevation angle forming a 100° included V-point. Made with a special tungsten carbide that delivers a unique combination of hardness and durability. Manufactured in the USA.

---

Dimensions: 76.2 x 3.175mm
Material: Tungsten carbide
Style: Burin
Brand: GRS
Shipping weight: 0.043 lbs (19.504g)
Country of origin: United States
