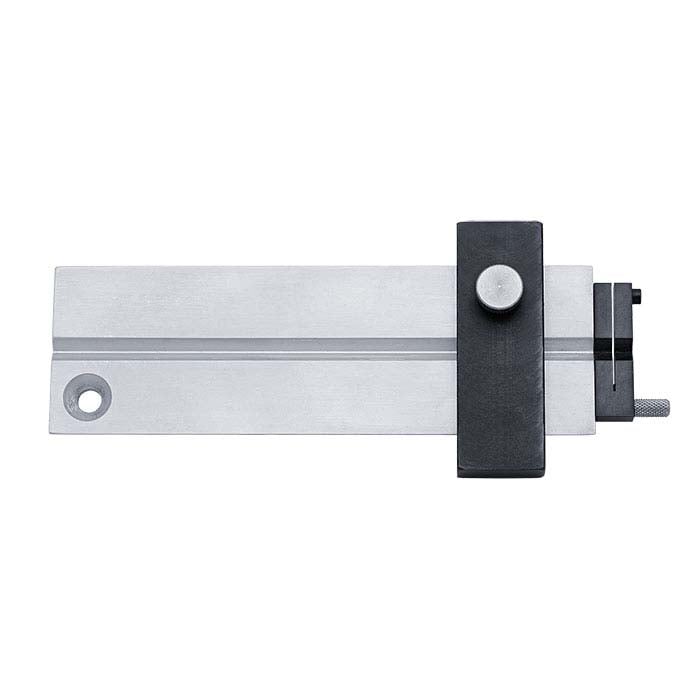

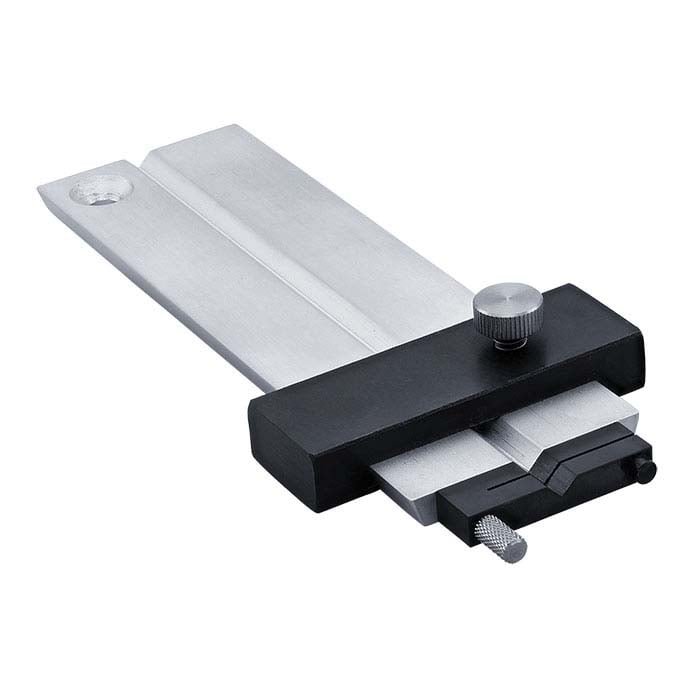

Jayne Redman® Wire and Tube Cutting Jig

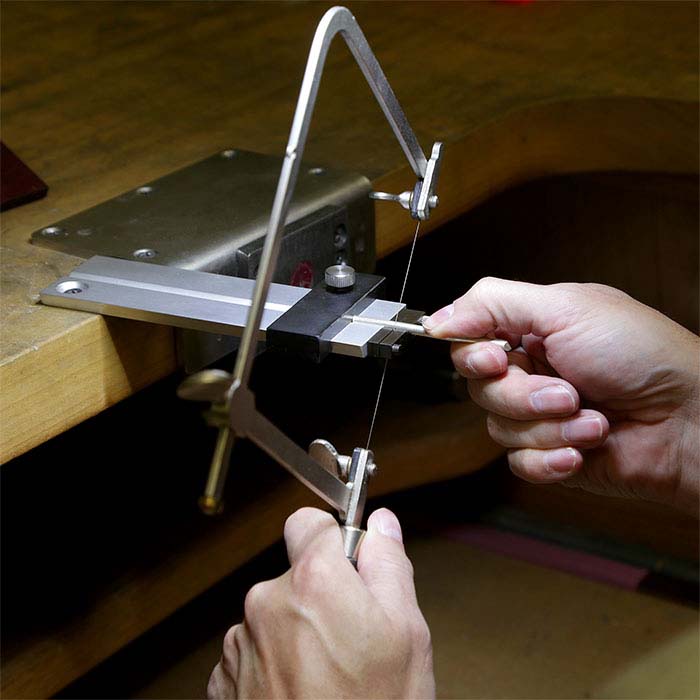

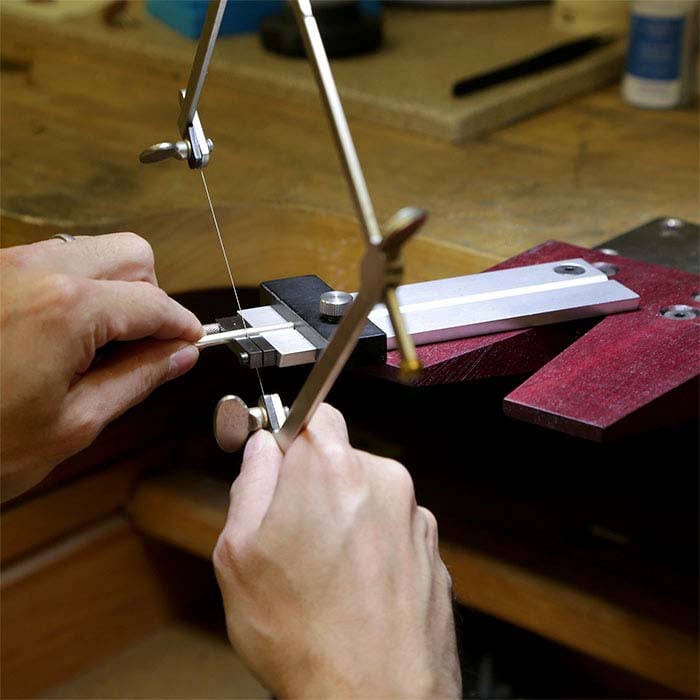

Designed by jewelry maker, designer and teacher Jayne Redman, this wire cutting and tube jig allows you to quickly measure and create repeatable cuts easier than ever. The jig easily attaches to the Jayne Redman rotational bench pin or can be screwed into your bench top for hands-free use during cutting.
• Position the stop and tighten the knurled knob to set the length of material to be cut.
• A 2mm setback on one side of the V-channel insert prevents fine gauge material from slipping during cutting; rotate the stop so the knurled knob is on the left to cut fine gauge material to less than 2mm in length.
• The saw guide accommodates material up to 7/8" (22mm) diameter and adjusts for right- or left-handed use; it can be removed to help you achieve consistent flush cuts with wire.

• Dimensions: 152.4 x 50.8mm
• Shipping Weight: 0.615 lbs (0.279kg)
• Country Of Origin: United States
• Brand: Jayne Redman
• Weight: 0.279 kg
