Midas Six-Station Plating System with 3-amp Rectifier, 1-Liter

Midas Six-Station Plating System with 3-amp Rectifier, 1-Liter

Priced per Each
$1,470.00
$1,470.00
Sale Sold out
Shipping calculated at checkout.

Delivery time: 2–3 weeks
Estimated arrival: Dec 21, 2025 – Dec 28, 2025

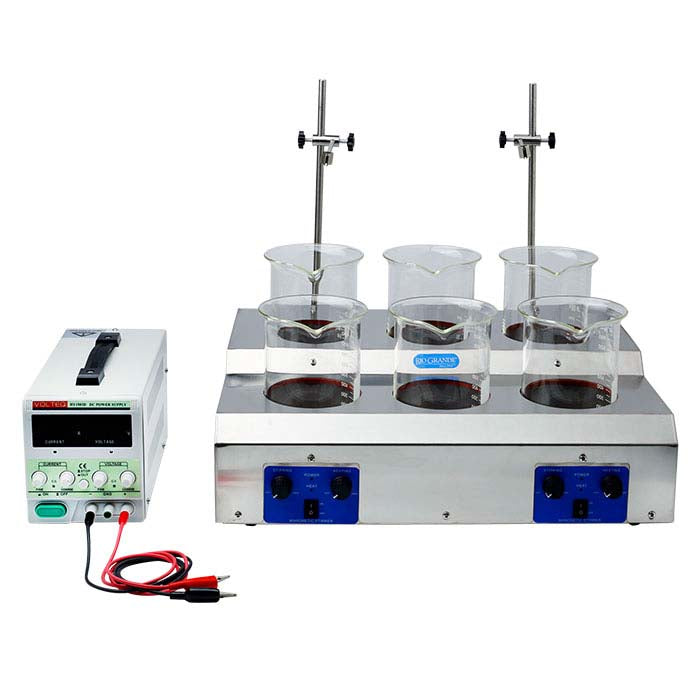

This Midas® stainless steel bath-plating unit is an ideal system for electro-plating and electro-forming processes. Designed to hold 1-liter (1,000mL) beakers (included), this system can be set up for three operations:

  • the first station is designed for electrocleaner
  • the second for acid dip
  • the third for plating
  • three stations for distilled-water rinsing between each stepThe beaker holding area is sealed to protect the interior of the machine. The two third-hand base attachments will hold the workpiece or a thermometer. The unit features:
  • controllable heat (ranging from room temperature to 212ºF)
  • controllable agitation with magnetic stirrers on station one and station five
  • a stainless steel lid is provided to keep dust and dirt out of the solution in the beakers
  • a plug-in jack for rectifiers, with two positive leads for anodes are built in
  • includes a 3-amp rectifier and a thermometer A plating station unit without rectifiers is also available.

Specifications

Brand:
Midas
Capacity:
1,000ml
Country of origin:
China
Dimensions:
495.3 x 381.0 x 393.7mm
Dimensions mm:
381.0 x 393.7mm
Price per unit:
Priced per Each
Shipping weight:
52.69 lbs (23.9kg)
Voltage:
110 volts
Weight:
23.9 kg
Weight kg:
23.900
