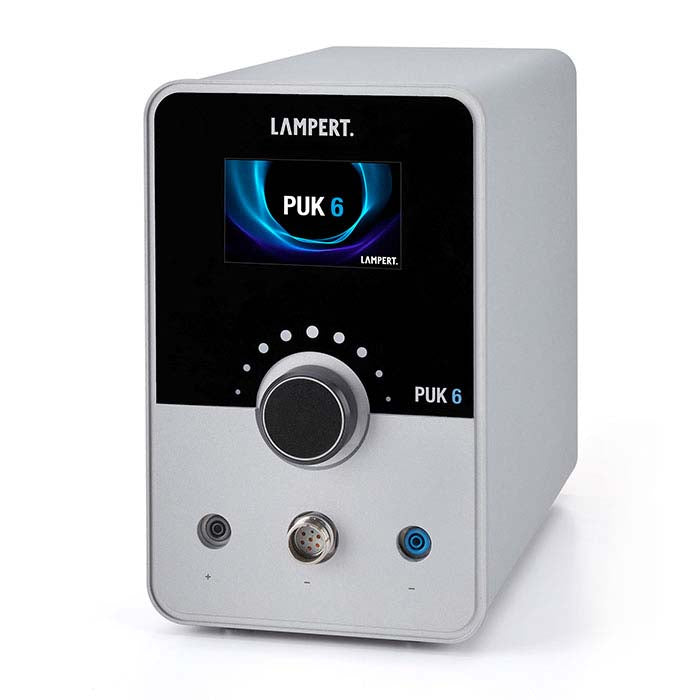

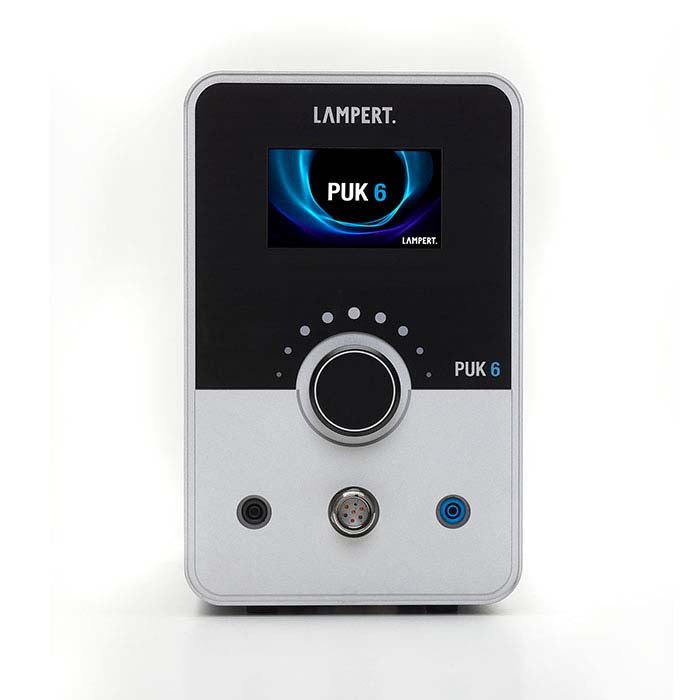

PUK 6 Pulse Arc Welder with Microscope

This PUK 6 arc welder and microscope delivers precise, high-quality repeatable welds on all precious metals, including silver alloys and base metal. The PUK uses WIG impulse welding and beautifully handles the finest and most intricate tasks. It allows you to weld on findings adjacent to gemstones, add metal, correct porosity, seal seams, tack components prior to welding and more. This arc welder is capable of up to 3.3 welding spots per seconds, has low-operating costs, is maintenance-free, CE certified and comes with a three-year warranty.
• A spot size as fine as 0.2mm provides the ability to weld with greater control.
• 11 memory slots allow you to save your most often-used setups for even faster operation.
• A simple-to-use touchscreen with swipe functions provide intuitive settings—simply select the metal type and the task you need to perform and start welding.
• Single rotary control offers alternative manual control over menu and parameter settings when desired.
• Smoothing function accelerates the weld cycle, increasing the heat generated in the welding zone, and helps to protect electrode tip for longer service life. The smoothing setting provides shorter repetition rates and serial pulses which enables a continuous workflow. This setting significantly improves the welding characteristics of silver, copper and bronze—highly conductive materials.
• Quality regulator offers optimal and consistent flow of argon gas to protect your pieces from oxidation and contamination during the welding process.

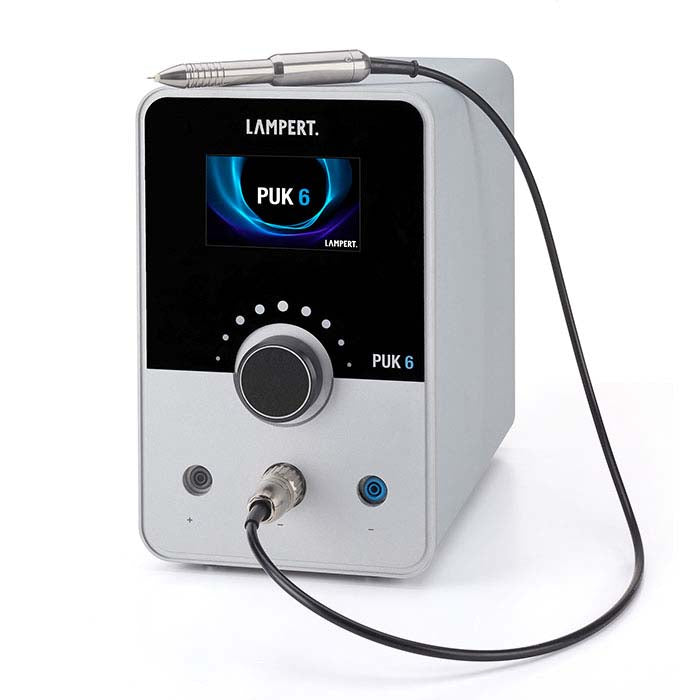

• welding handpiece is a high-precision instrument that delivers exceptionally fast reaction time; it's also slim and comfortable in your hand. The nozzle is optimized for inert gas use, with reduced turbulence, helping shield workpieces from oxygen during welding.

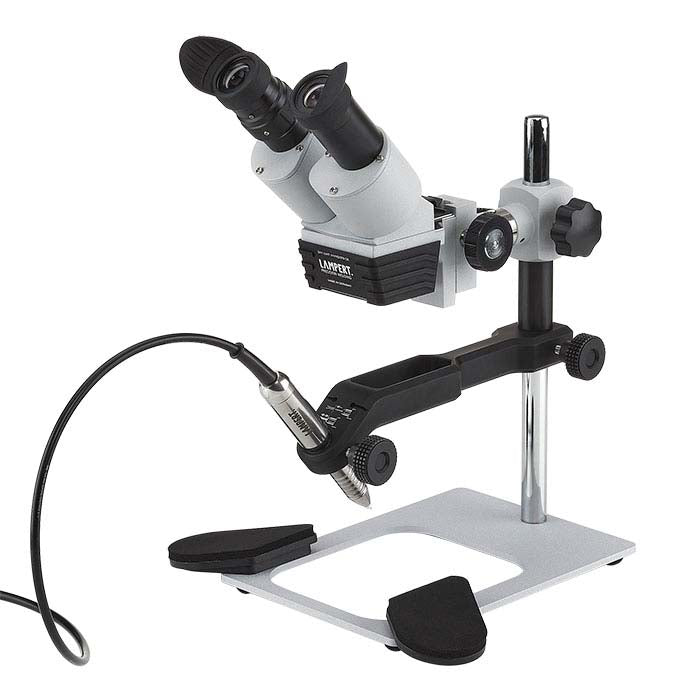

• A compact footprint fits in any shop.SM6 MicroscopeThe SM6 microscope (included) offers 10X magnification that significantly enhances the precision of your work. It can also be used as a general bench microscope by simply swiveling the handpiece holder out of the way. The microscope features height and tilt adjustments that ensure a comfortable, ergonomic posture that keeps you focused and relaxed while you work. A dust cover is provided.
• Lenses feature DIN CERTCO-certified eye protection (UV11/IR11) for safe, confident operation.
• Integrated LED lighting provides a clear, brilliant, unobstructed view of the weld site; four brightness levels ensure optimal viewing of your work.
• Field of vision is .78" (20mm); operating distance is 5.7" (145mm).
• The handpiece dock on the microscope stand keeps the power securely anchored and exactly on target.

• Dimensions: 365 x 194 x 305mm
• Voltage: 110 volts
• Frequency: 50/60Hz
• Brand: PUK
• Shipping Weight: 49.5 lbs (22.453kg)
• Country Of Origin: Germany
• Weight: 22.453 kg
